General
Width
60 cm
Colour
Black
Installation type
Wall-mounted
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Total power of the motors
210 W
Type of control setting and signalling devices
LED, touch control
Number of speed settings
3
Max. air extraction
638 m³/h
Sound power at max. speed (2010/30/EC)
64 dB
Max. air recirculation
290 m³/h
Sound power at max. speed (recirculation)
65 dB
Grease filter material
Washable aluminium
Energy efficiency rating
A
Total annual energy consumption
50.0 kWh/annum
Height of the product
750-1080/860-1080 mm
Width of the product
596 mm
Depth of the product
386 mm
Minimum distance above an electric hob
470 mm
Minimum distance above a gas hob
570 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
200 cm
Net weight
12.9 kg
Appliance height exhaust air max
1,080 mm
Appliance height exhaust air min
750 mm
Appliance height recirculating max
1,080 mm
Appliance height recirculating min
860 mm
PerfectAir
No
Hob-based hood control
No
EcoSilence Drive – efficient and extra silent
No
Extremely quiet
No
Boost position
No
Remote control
No
Number of lights
2
Total luminance
377 lux
Color temperature
Warm (<= 3.000 K)
Illumination type softlight
No
Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC)
339 lux
Light color tunable by Home Connect
No
Ambient light
No
Connectivity
Home Connect
No
Variant:
Design:
Operating and power:
Environment and safety:
Comfort:
Measures:

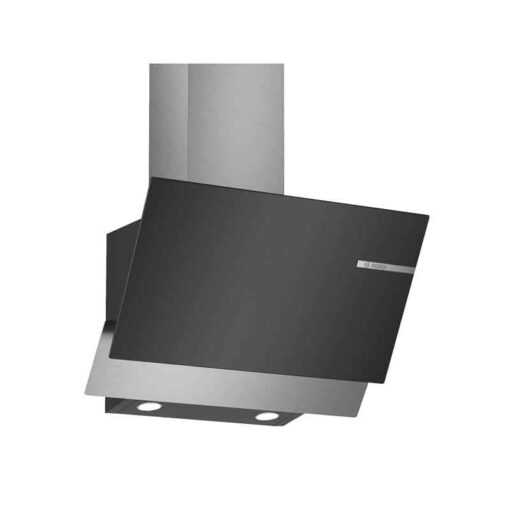

60 cm Wall mounted chimney hood
60 cm wide
black with glass canopy
Ducted/Recirculating operation
Recirculating kit
wall
touch control with LED
Electronic via touch control with LED
3-stage
Filter cover glass
Metal grease filter, dishwasher safe
Dimensions exhaust air (HxWxD): 750-1080 x 596 x 386 mm
Dimensions recirculating (HxWxD): 860-1080 x 596 x 386 mm
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
